Our Products >> Tile Profile Sheets

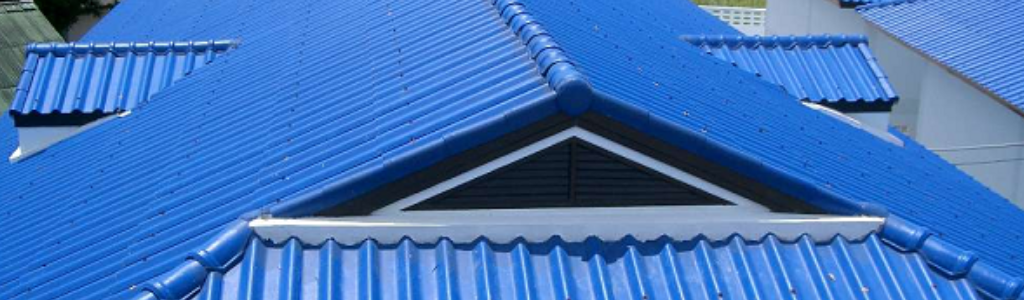

Roof Tiles are unique products and it is the only product in the roofing sheet industry in India that blends the classical heritage looks of architecture with modern material. For many years, architects, contractors and building professionals everywhere have recognized metal roofing for its low maintenance, superior weather resistance and long life. Roof Tiles are the latest generation of metal roofing - functional, durable, and ideally suited to commercial buildings, tourist resorts, farm houses, hotel, residential houses and public & semi public area residential use. Roof Tiles help you save money by reducing assembling time and workmanship in installation. Tiles provides a rich elegant and aesthetic Quality & increases the value of building
KEY FEATURES
- Architecturally attractive, durable and add aesthetic look to the building
- Strong, resistant to fire and to all weather conditions
- Easy to assemble, Saves time and labor cost
- Light, easy to handle and store
- Does not break, crack or leak
- Environment friendly
- Offers the beauty of clay tile with minimal dead weight on the roof
- Unbeatable hurricane, hail, and all- weather resistance
- It also eliminates problems of pest infestation and rot that occur with wood and clay roofing materials
Material Specification
- Thickness (TCT): 0.5 mm, 0.55 mm, 0.60 mm.
- Available in any length from 1 to 6 meters
- Available in materials- color coated galvanized, galvalume.
- Variety of colors available
| Specifications | |||
| Tie Roof Prfile | Thickness | Weight | |
|---|---|---|---|
| Wave - Tile TM | Running Length | Cover Width | |
| Tile Pitch- 250 c/c | mm | Kg/Rm | Kg/m2 |
|
Coil Width : 1220mm cover Width: 1000mm Overal Width : 1130mm Steel Strength: 240 & 300 MPa Metalic Coating: Galvalume/Galvanized Color Coating: Bare Galvalume/Polyester/SMP/PVDF |
0.45 | 4.23 | 4.23 |
| 0.50 | 4.70 | 4.70 | |
| 0.60 | 5.64 | 5.64 | |
