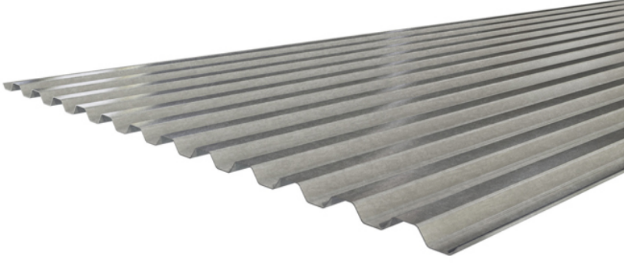

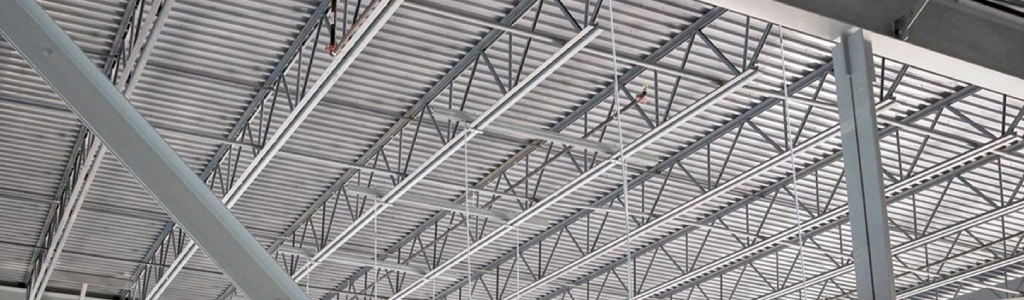

DECKING PROFILE – 44/130

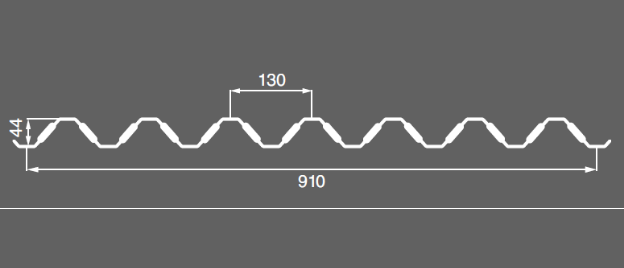

44mm deep crest at 130mm distances having special
embossment, rolled in to the profile created the highest
bond between concrete and the steel floor, together with
the smaller ribs and flutes enhances our product's
composite action rigidity.
TECHNICAL SPECIFICATIONS
| Material Specification | Sectional Properties | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| STEEL FLOOR DECK PROFILES | Yield Strength of steel | Thickness to consider | Weight | Ixx (cm2)/m | Zxx (cm2)/m | Moment capacity at Top compression flange | Moment capacity at Bottom compression flange | ||
| cover width | Running Length | ||||||||
| MPs | mm | kg/m2 | kg/Rm | Top | Bottom | kNm/m | kNm/m | ||
|
Burly Deck (44/130) 1. Coil Width : 1220 mm 2.Cover Width : 910 mm 3.Thickness : 0.80 - 1.60 mm 4.Steel Grade : 240 - 550 MPa 5.Metallic Coating : ZAM 150, Z 120, Z 275 6.Color Coating (Optional) : Polyster. SMP. PVDF2 |
240 | 0.80 | 8.419 | 7.66 | 26.028 | 12.143 | 11.269 | 2.567 | 2.569 |
| 1.00 | 10.524 | 9.58 | 32.345 | 15.041 | 13.964 | 3.184 | 3.184 | ||
| 1.20 | 12.629 | 11.49 | 38.588 | 17.887 | 16.613 | 3.788 | 3.788 | ||
| 1.50 | 15.786 | 14.37 | 47.817 | 22.059 | 20.501 | 4.673 | 4.673 | ||
| 1.60 | 16.839 | 15.32 | 50.858 | 23.423 | 21.773 | 4.964 | 4.964 | 340 | 0.80 | 8.419 | 7.66 | 26.028 | 12.143 | 11.269 | 3.678 | 3.678 |
| 1.00 | 10.524 | 9.58 | 32.345 | 15.041 | 13.964 | 4.573 | 4.573 | ||
| 1.20 | 12.629 | 11.49 | 38.588 | 17.887 | 16.613 | 5.440 | 5.440 | ||
| 1.50 | 15.786 | 14.37 | 47.817 | 22.059 | 20.501 | 6.713 | 6.713 | ||
| 1.60 | 16.839 | 15.32 | 50.858 | 23.423 | 21.773 | 7.131 | 7.131 | 550 | 0.80 | 8.419 | 7.66 | 26.028 | 12.143 | 11.269 | 5.857 | 5.857 |
| 1.00 | 10.524 | 9.58 | 32.345 | 15.041 | 13.964 | 7.291 | 7.291 | ||
| 1.20 | 12.629 | 11.49 | 38.588 | 17.887 | 16.613 | 8.697 | 8.697 | ||
